| Detectable Analytes | Carbon Dioxide |
| Flow Rate | 1.0 L/min. (1 atm inlet pressure) |
| Inputs | 4 Isolated Voltage Inputs 0 to 10 V, 16 Digital Inputs (TTL) |
| Linearity | ±1.5% of span (at concentrations of 10 to 100% of span) |
| Response Time | 90 sec. (30 sec. average time) |
| Span Drift | ±2% of reading (24 hr.) |
| Temperature (English) Operating | 41°F to 113° F |
| Temperature (Metric) Operating | 5°C to 45°C |
| Zero Noise | 0.5 ppm RMS (60 sec. averaging time) |
| Certifications/Compliance | CE, TUV-SUD Safety, UKCA |
| Communication Ports | Serial ports: 1 RS-232/485 port; 1 RS-485 external accessory port Other ports: 3 Full Speed USB ports (one in front, two in rear) 1 Gigabit ethernet port |
| Communication Protocols | MODBUS, Streaming, Gesytec (Bayern-Hessen) |
| Depth (English) | 24 in. |
| Depth (Metric) | 609 mm |
| Description | 410iQ Carbon Dioxide Gas Analyzer |
| Detection Limit | 1.0 ppm (60 second averaging time) |
| Electrical Requirements | 100-240 VAC 50/60 Hz, 275 Watts |
| Height (English) | 8.72 in. |
| Height (Metric) | 221.48 mm |
| Measurement Range | 0—10000 ppm |
| Outputs | 6 Isolated analog voltages outputs, with 4 selectable ranges 6 Isolated analog current outputs, with 2 selectable ranges; 8 Solenoid driver outputs 10 Digital reed relay contact outputs |
| Precision | +/- 1.0% of reading |
| Voltage | 100/240 V |
| Weight (English) | 31.3 lb. (Standard), 30.1lb. (High Level) |
| Weight (Metric) | 14.2 kg (standard), 13.7 (high level) |
| Width (English) | 16.75 in. |
| Width (Metric) | 424.45 mm |
| Zero Drift | ±1.0 ppm (24 hour) |
| Unit Size | Each |

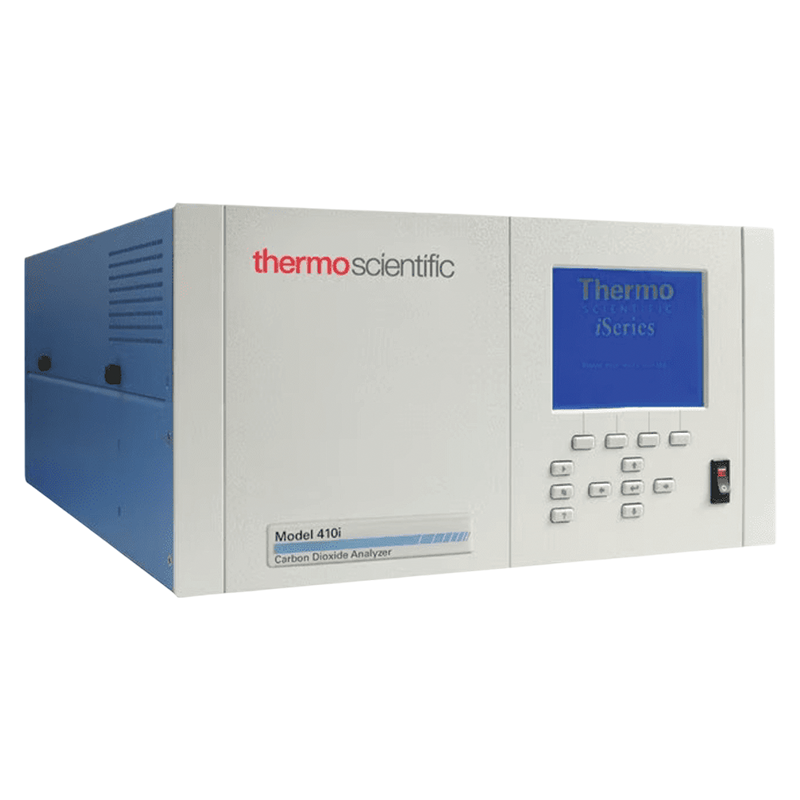

410 i Carbon Dioxide Gas Analyzer
Measure the concentration of CO2 in emissions with the Thermo Scientific™ Model 410i Carbon Dioxide Gas Analyzer, which utilizes advanced NDIR optical filter technology. The Model 410i continuously monitors carbon dioxide (CO2) in source emissions while offering user-selectable reporting capabilities for either of the accepted industry standards, straight extractive or dilution sampling methods.
Discover the iQ to work smarter with our next-generation 410iQ Carbon Dioxide Analyzer.
This analyzer utilizes advanced Non-Dispersive Infrared technology (NDIR) with optically fixed bandpass interference filters and quantum detection to analyze the concentration of CO2 in the gas stream. In addition, the expanded ambient temperature operating range provides excellent performance over a wider range of concentrations and offers linearity through all ranges.
Key Features:
- Advanced NDIR technology
- User-selectable reporting capabilities
- Expanded ambient temperature operating range
- High performance over a wider range of concentrations
- Linearity through all ranges
Also Available with an Oxygen Sensor Module:
Using paramagnetic sensor technology, the Model 410i with Oxygen gives the source measurement of CO2 extended capabilities, including the ability to read and report oxygen concentrations within the sample stream up to 100%. Additionally, programming allows the user to correct the CO2 reading for the amount of oxygen in the sample. Selectable O2 concentrations can be used as the correction factor. (i.e. CO2 corrected to 6% O2 or any other percentage.)
iSeries Advantage:
- Ethernet connectivity for efficient remote access
- Enhanced user interface with one-button programming and large display screen
- Flash memory for increased data storage and user-downloadable software
- Enhanced electronics design optimizes product commonality
- Improved layout for easier accessibility to components
