- Increased operator, community and environmental safety. No disinfection by-products are created, and no chemicals are transported, stored or
handled. - Most efficient UV system available. Compared to competitive low-pressure, highoutput (LPHO) or amalgam lamp-based systems.
- Reduces operating costs by as much as 30% per year. Long-lasting
amalgam lamps and variable-output ballasts optimize UV output to meet wastewater conditions and maximize system efficiency. - Validated disinfection. Real-world, field performance data eliminates sizing
assumptions resulting from theoretical dose calculations. - Dual-action sleeve cleaning system improves performance and
reduces labor costs. Automatic ActiClean chemical/mechanical cleaning system maintains sleeve transmittance of at least 95%, and works online – eliminating the need to remove modules from the channel. - Reduced installation costs. The compact TrojanUV3000Plus can be retrofitted into existing chlorine contact tanks, and comes pre-tested, pre-assembled and pre-wired to minimize installation costs.
- Outdoor installation flexibility. Can be installed outdoors, eliminating the need and costs of a building, shelter and HVAC for ballast cooling.
- Guaranteed performance and comprehensive warranty. Includes a
Performance Guarantee and the best lamp warranty in the industry.

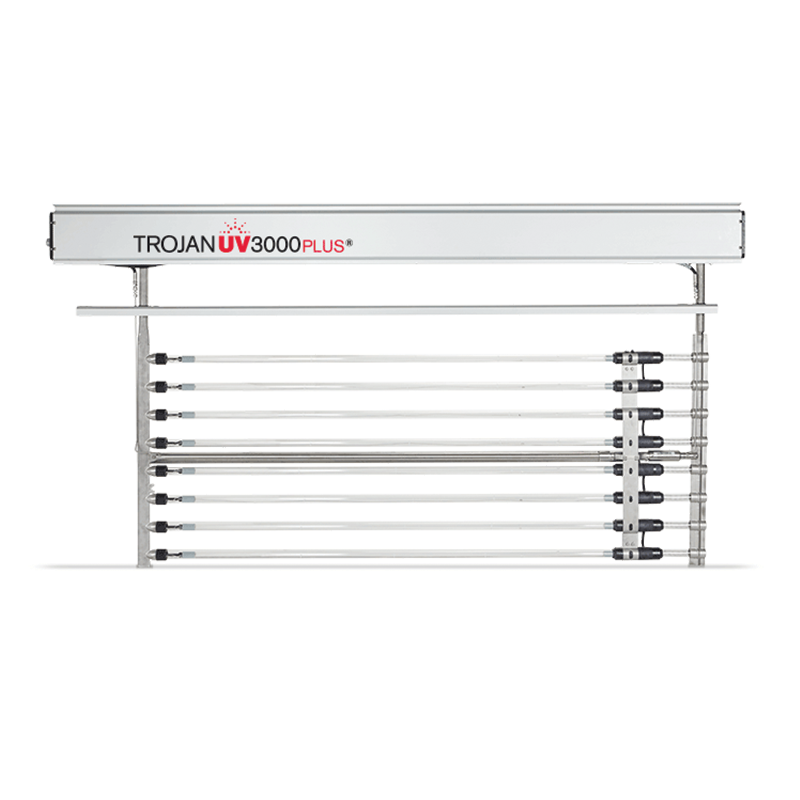

Trojan UV 3000Plus
UV is the most effective, safe and environmentally friendly way to disinfect wastewater. It provides broad-spectrum protection against a wide range of pathogens, including bacteria, viruses and chlorine-resistant protozoa (such as Cryptosporidium and Giardia).
The TrojanUV3000Plus™ is one of the reasons why UV treatment is now a favored technology in wastewater treatment. This highly flexible system has demonstrated effective and reliable performance around the world. It is well suited to wastewater disinfection applications with varying flow rates and influent. These include particularly challenging influents such as combined sewer overflows, primary and tertiary wastewater reclamation and reuse.
The proven infrastructure of the TrojanUV3000Plus has been continuously refined to enhance friendly operation. The result is more dependable performance, simplified maintenance and maximized UV lamp output at end-of-lamp life. The TrojanUV3000Plus also incorporates innovative features to further reduce operation and maintenance (O&M) costs, such as variable output electronic ballasts and our revolutionary ActiClean™ automatic chemical/mechanical sleeve wiping system.
- Wastewater Disinfection: The primary use is disinfecting treated wastewater (secondary/tertiary effluent) before discharge or reuse.
- Combined Sewer Overflows (CSOs): Handles challenging, variable flows from CSOs effectively.
- Wastewater Reclamation & Reuse: Disinfects water for non-potable uses (irrigation, industrial, etc.).
- Challenging Influent: Suited for difficult influents due to its robust design and cleaning system.
- Typical Applications: Suitable for a wide range of wastewater treatment plants, including tertiary treatment and water reuse.
- Lamp Type: High-efficiency Amalgam lamps.
- Input Power per Lamp: 250 Watts.
- Lamp Driver: Electronic, variable output (60–100% power).
- Lamp Configuration: Horizontal, parallel-flow arrangement.
- Module Configuration: Available with 4, 6, or 8 lamps per module.
- Enclosure Ratings:
- Module Frame / Lamp Driver: TYPE 6P (IP68/IP67)
- Other Enclosures: TYPE 4X (IP56)
- Lamp Driver Cooling: Natural convection — no AC or forced air required.
- Installation: Suitable for both indoor and outdoor setups.
- Sleeve Cleaning: Optional ActiClean automatic chemical/mechanical cleaning system.
- Controller Options: TouchSmart Controller, TouchSmart Plus Controller, or PLC-based systems.
