- Display: 12-inch TFT Color Touchscreen, 1280×800 resolution, 64K colors, dimmable wide format.
- Operation: Intuitive touch operation plus function keys for flexible control.
- Connectivity: Supports PROFINET (PN) or PROFIBUS DP (DP) for seamless PLC communication (S7-1200/1500).
- Engineering: Configured easily with Siemens TIA Portal (WinCC Basic).
- Visualization: Clear graphics, trend views, alarms, and diagnostics for real-time monitoring.
- Data Handling: USB Host for sticks/printers, SD card slot for archiving and data logging.
- Design: Rugged, compact, industrial-grade, and suitable for mounting in control panels.
- Scalability: Compatible with other Siemens Basic and Comfort Panels for system growth.

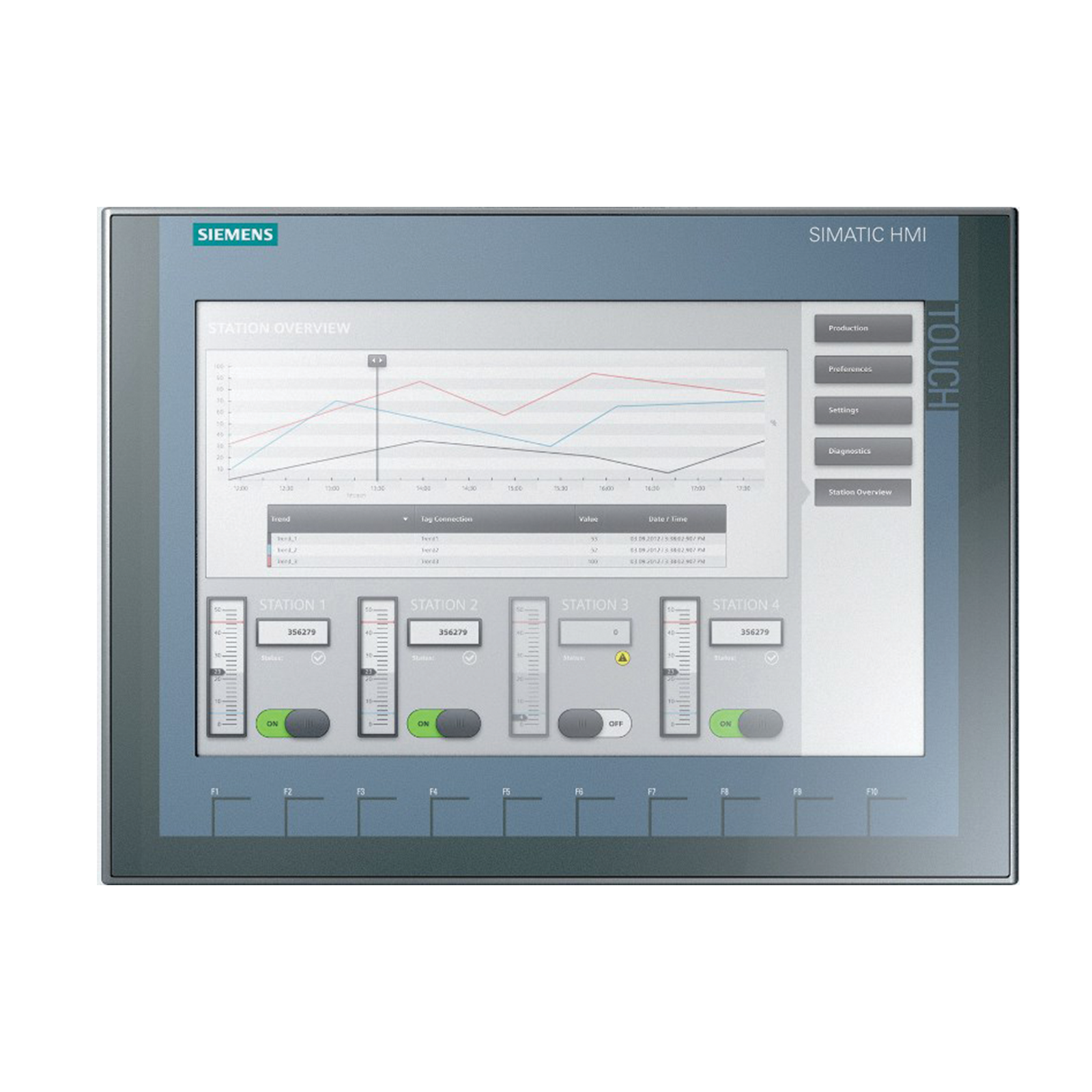

SIMATIC HMI, KTP1200 Basic
SIMATIC HMI, KTP1200 Basic, Basic Panel, Key/touch operation, 12″ TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD.
- Simple Machines and Equipment: The KTP1200 Basic is part of the entry-level range designed for the operation and monitoring of simple machines and equipment directly on site.
- Manufacturing and Production Lines: It is well-suited for general industrial automation, including applications in manufacturing plants and factory lines, where reliable monitoring and control are necessary.
- Process Automation: The panel can be used in process automation systems, such as in water and wastewater treatment facilities, to monitor parameters like flow rates and chemical concentrations in real-time.
- Integration with Siemens PLCs: It offers significant value when paired with Siemens SIMATIC S7-1200 controllers and can connect to various PLCs via its PROFINET or PROFIBUS interfaces, making it flexible within the Siemens ecosystem.
- Applications Requiring Both Touch and Keypad: Its combined key/touch operation provides flexibility in environments where an operator might prefer physical buttons or a touchscreen interface
- Display Type: 12-inch TFT widescreen, dimmable
- Resolution: 1280 × 800 pixels
- Colors: 65,536 colors
- Operation: Touch screen with 10 function keys
- Interfaces (Ports):
- 1 × RJ45 for PROFINET / Ethernet
- 1 × USB host
- Supply Voltage: 24 V DC (permissible range: 19.2 – 28.8 V DC)
- Current Consumption: 550 mA
- User Memory: 10 MB
- Housing Material: Plastic
- Protection Rating: IP65 (front side when mounted)
- Configuration Software: WinCC Basic (TIA Portal) from V13 / STEP 7 Basic V13 onwards
- Mounting Cutout (W × H): 310 mm × 221 mm
- Device Depth: 60 mm
- Net Weight: Approx. 1.7 kg
