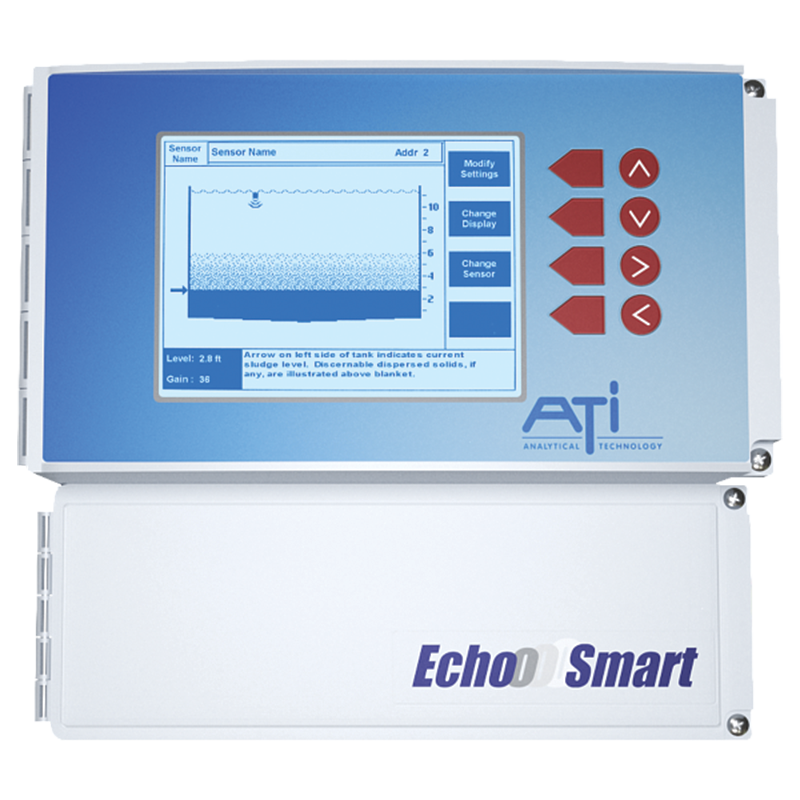

EchoSmart Sludge Blanket Monitor

ATi’s EchoSmart Interface Level Monitor provides an advanced yet user friendly solution for Sludge Blanket level detection, offering cost effective, trouble-free and reliable measurement.

Continuous, real-time sludge blanket level measurement

EchoSmart is an underwater interface level analyser technology that is built on a digital platform. This allows the analyser to be located in the sensor. The result is greater flexibility in equipment configuration options, enhanced communication capabilities and reduced installation costs. EchoSmart’s unique Smart-Sensor technology enables the control and monitoring of up to 16 Smart Sensors from one EchoSmart Controller. This allows for field networks of sensors, which lowers the ‘per-tank’ cost. These field networks can also be created wirelessly, eliminating costly conduit and cabling runs.

EchoSmart sensors employ interface-detection algorithms developed exclusively by ATi with proven performance across the UK, USA and around the world.

EchoSmart is adaptable and can be programmed to suit various tank sizes and designs. Three sensor models provide a solution for most applications: the standard sensor with multi-flex assembly for when surface skimmers are present, the self-cleaning sensor for applications without surface skimmers, and the sensor with turbidity that offers further insight into water clarity.

Get A Quote
Explore More Product
Features
  • Sensors generate and process the ultrasonic signal for continuous, real-time measurement and maximum flexibility.
  • Easy to set-up, easy to operate and easy to secure consistent, reliable, trouble-free measurements
  • Tracks well-settled blankets
  • Can be configured to track dispersed solids (fluff or rag layer)
  • Suitable for round or rectangular clarifiers
  • Standard sensor for applications with surface skimmers. Multi-flex assembly recommended.
  • Wiper sensor: self-cleaning face for applications without surface skimmers.
  • Level & Turbidity sensor: self-cleaning face with sludge level and turbidity in one sensor

Key Benefits
  • Monitors blanket levels 24/7/365
  • Large display with intuitive screens for quick entry of parameters
  • Soft Key operation with Help Prompts for all settings
  • Automatic initialisation for easy start-up
  • Adaptive algorithms in each sensor for uninterrupted operation
  • Installation and networked flexibility
  • Turbidity measurement option

  • Wastewater Treatment Plants: Monitor clarifiers and thickeners for efficient sludge removal.
  • Industrial Effluent: Manage sludge in diverse industrial processes.
  • Tertiary Filter Backwashing: Optimize reuse water filters, reducing guesswork and saving costs.
  • Measurement: Underwater ultrasonic; optional 90° scattered light for turbidity.
  • Sensors: Standard, self-cleaning wiper, or combined level & turbidity.
  • Ranges: Acoustic 0.305–10 m; turbidity 0–50 NTU.
  • Accuracy & Resolution: ±0.35 m at 3.05 m; 3.05 mm resolution; display in 0.01 m/0.1 ft/1 cm/in.
  • Power: 100–240 VAC or 24 VDC.
  • Outputs: Two 4–20 mA (level & turbidity), RS-485 Modbus RTU.
  • Display: Graphical backlit 320×240 px with soft keys.
  • Enclosure: Controller IP65/NEMA 4X; sensor IP68.
  • Certifications: CE; optional 900 MHz RF module for mesh networks.
