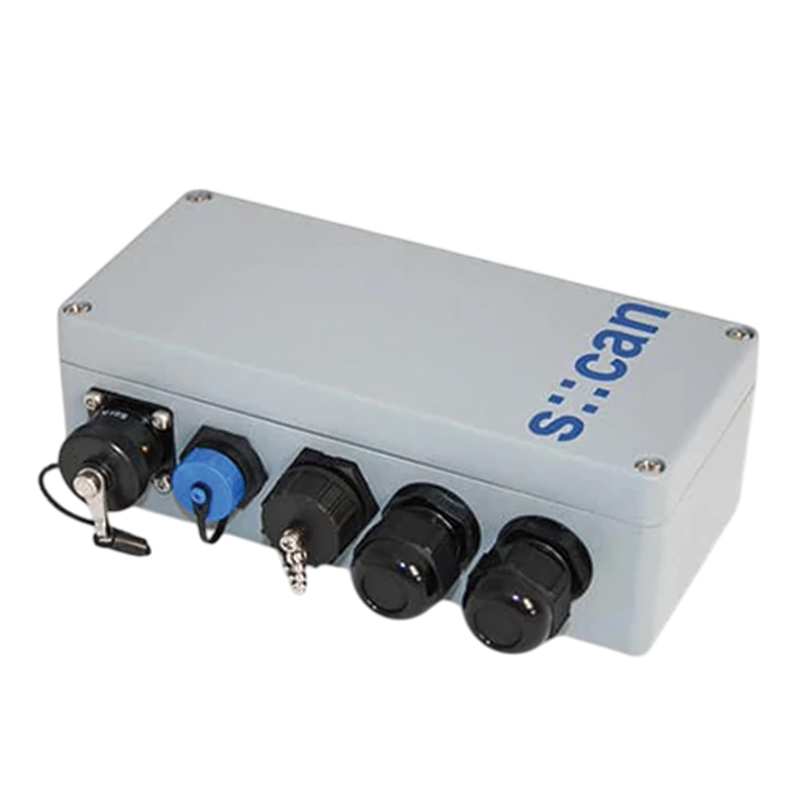

con::nect
For operating the spectro::lyser™, an commercial computer/notebook can be used. In this case the interface box con::nect connects the probe to the computer/notebook, to the supply of compressed air and to the power supply. This way, your computer/notebook is transformed into a terminal for the spectro::lyser™.
- s::can power supply including interface functionality
- operation of one s::can spectrometer probe and s::can sensor / ISE probe
- USB interface to PC/notebook
- RS485 interface to SCADA (modbusRTU integrated, profibusDP optional)
- essential for cable lengths over 37.5m (repeater functionality)
- control of cleaning valve
- power supply 12 VDC and 230 VAC or 24 VDC
- Wireless & Wired Connection: Connects to the spectro::lyser V3 probe via WLAN and provides an RJ45 port for wired network access.
- User Interface: Web-based IoTool interface for easy probe configuration, visualization, and monitoring.
- Expandability: Supports extended distances and integration with multiple sensors via con::cube and con::lyte networks.
- Cloud Integration: Sends real-time data to cloud platforms like BEACON® SaaS or AquaCUE® Flow Measurement Manager for analysis and management.
- Device Function: Manages one spectro::lyser V3 probe and one automatic cleaning device efficiently.
- Drinking Water Treatment: Real-time monitoring of raw and treated water to ensure safety, regulatory compliance, and process optimization.
- Wastewater Treatment: Measures flow and key water quality parameters in treatment plants and collection systems for operational efficiency and compliance.
- Environmental Monitoring: Tracks conditions in rivers, lakes, groundwater, outfalls, and other natural water bodies to assess ecosystem health.
- Industrial Processes & Effluent: Monitors process water, final product quality, and industrial wastewater discharge across industries such as chemical, oil & gas, food & beverage, and power generation.
- Distribution Network Monitoring: Provides real-time data on water quality, flow, and pressure within utility networks to detect leaks, contamination, or anomalies promptly.
- Function: Efficient connection device for s::can probes and cleaning systems.
- Compatibility: Designed for one spectro::lyser V3 probe and one cleaning device, with the ability to expand existing sensor networks (con::cube and con::lyte systems).
- Connectivity: Features an RJ45 connector for wired network access, allowing for flexible integration and longer distances/higher number of sensors in a network.
- Integration: Facilitates the transmission of data to terminals like the con::cube V3 IoT terminal or con::lyte terminal, which then manage data logging, control functions, and communication (e.g., via email or text notifications).
- Purpose: The device itself does not collect data, but acts as a passive hub/connection point within a larger monitoring ecosystem.
