- Environmental Monitoring:
- Tracks health of natural water bodies to establish baselines and monitor changes over time
- Monitoring of lakes, streams, wetlands, and coastal areas
- CTD (Conductivity, Temperature, Depth) monitoring
- Harmful Algal Bloom (HAB) monitoring in surface water and coastal zones
- Dredging impact assessment
- Water Resource Management:
- Groundwater: Low-flow sampling and continuous monitoring
- Remediation & Mine Water: Quality monitoring during/after in-situ treatment; dewatering, drainage, pit lake monitoring
- Source & Drinking Water: Raw water monitoring before treatment
- Wastewater & Stormwater:
- Stormwater Management: Continuous water level and quality monitoring during storm events
- Combined Sewer Overflow (CSO) Monitoring: Tracks CSO impacts on surface water
- Aquaculture:
- Pond and Recirculating Aquaculture Systems (RAS): Monitors DO and other parameters to protect stock health and optimize yields
- General Use:
- Spot Sampling & Profiling: Quick measurements and vertical profiling of water columns
- Remote Monitoring: Integration with telemetry systems for real-time data access via platforms like HydroVu

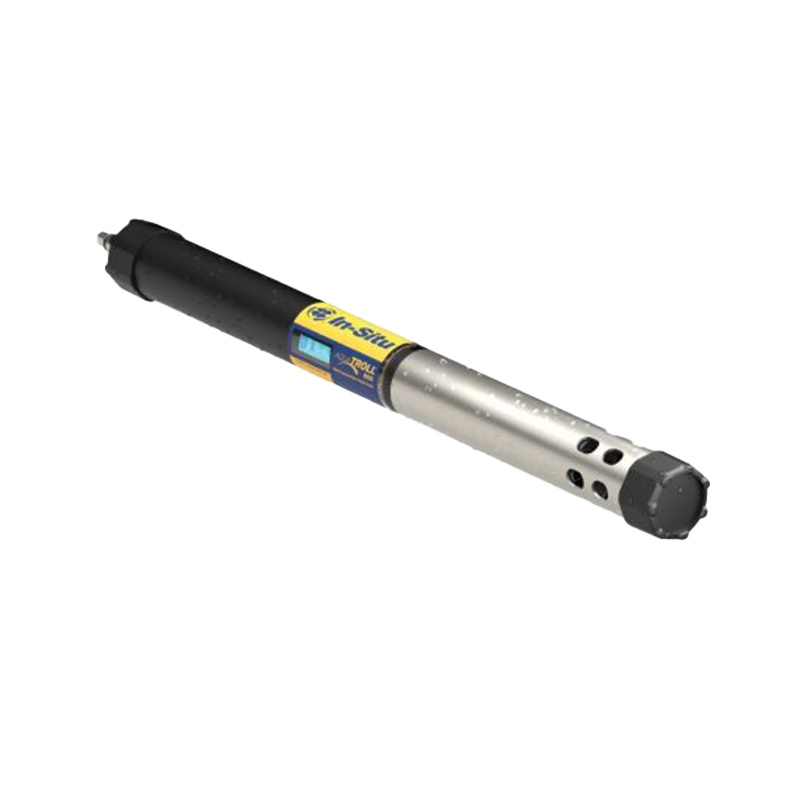

Aqua TROLL 600 Multiparameter Sonde
The Aqua TROLL 600 uses the latest sensor and electronics technology to provide laboratory-quality measurements for field use. Parameters include water level, pH, dissolved oxygen, and more. The instrument fits inside wells as small as 2” in diameter. The water level/pressure sensor and barometric pressure sensor are integrated into the sonde. Additional sensors may be selected and replaced to suit your project’s needs. An optional motorized sensor wiper may also be included on the instrument.
- Smart, Interchangeable Sensors: Up to 4 smart ports; supports optical RDO (DO), pH/ORP, conductivity, temperature, turbidity, and nutrient ISEs (Ammonium, Chloride, Nitrate)
- Rugged & Reliable Design: Titanium restrictor, interlocking sensors, wet-mate connectors, anti-roll bumpers, corrosion-resistant housing for harsh environments
- Advanced Antifouling: Sub-2-inch system for all sensors, including conductivity, to prevent fouling during long deployments
- Easy Data & Connectivity: Bluetooth® wireless connection to VuSitu Mobile App (Android) for site tagging, GPS, auto-calibration, and real-time data viewing
- Onboard Data Management: LCD screen for quick status checks, internal memory, plus backup logging to integrated micro SD card
- Low Power & Long Deployments: Over 9 months of battery life for continuous monitoring
- Vented/Non-Vented Options: Pressure sensor available for gauged (vented) and absolute (non-vented) measurements
- Simplified Calibration: Uses only 50 mL of solution, reducing costs
- Dimensions: 1.85 in. (4.7 cm) OD × 23.3 in. (59.2 cm) length
- Weight: 3.2 lbs (1.45 kg) with sensors, batteries, and bail
- Operating Temperature:
- Components without fluid: -40°C to 65°C
- pH/ORP sensors: -5°C to 65°C
- Pressure Rating: Up to 350 PSI (Vented or Non-Vented options)
- Environmental Rating: IP68 with sensors/cable attached
- Internal Power: 2 D-cell batteries (Alkaline or Lithium), 9+ months life (without wiper)
- External Power: 8–36 VDC (optional)
