- ISE Measurement: Uses Ion-Selective Electrode technology with temperature, optional pH, and potassium compensation for accurate ammonium readings.
- Automatic Cleaning: Compressed-air cleaning reduces maintenance and ensures stable performance.
- High Stability: Factory pre-calibrated with a non-porous, non-leaking reference electrode for long-term reliability.
- Easy to Use: Supports “plug & measure” setup with simple operation through s::can terminals/software.
- Flexible Installation: Works InSitu or inside a flow cell within monitoring stations.
- Robust Build: IP68 protection when housed, suitable for harsh water/wastewater environments.
- Multi-parameter Support: Can integrate pH, nitrate, temperature, and other measurements (model-dependent).
- Wide Applications: Ideal for surface water, groundwater, drinking water, and wastewater treatment.

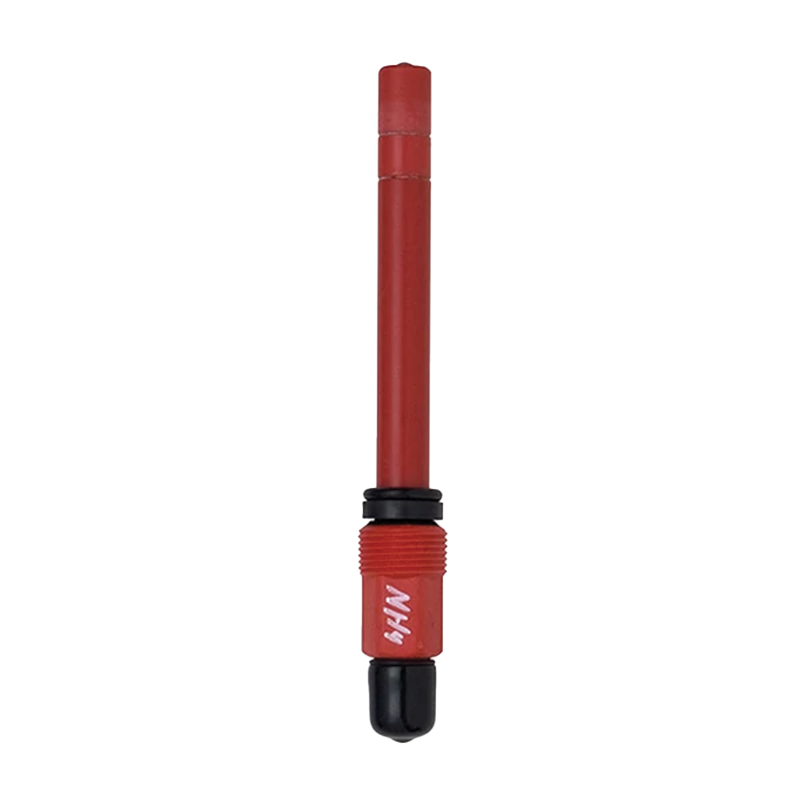

Ammonium electrode for ammo::lyser™
The ammonium electrode for the ammo::lyser™ is a plug-and-play ISE sensor designed for real-time ammonium (NH4+NH_{4}^{+}) measurement in surface water, wastewater, and drinking water, offering high stability with built-in pH and temperature compensation.
- Wastewater: Monitors ammonium in influent, aeration tanks, and final effluent.
- Surface Water: Suitable for rivers, lakes, and other natural water bodies.
- Groundwater: Used for tracking ammonium levels and overall water quality.
- Drinking Water: Supports treatment plants in ensuring safe, compliant water quality.
- Measuring Principle: Ion-Selective Electrode (ISE) with optional potassium compensation.
- Parameters Measured: Ammonium (NH₄-N) and temperature; optional pH, nitrate (NO₃-N), or chloride (Cl⁻) depending on model.
- Measuring Range (NH₄-N):
- Eco version: 0.3–30 mg/L
- Other configurations: up to 1–1000 mg/L (factory pre-calibrated 1–100 mg/L)
- Accuracy: ±3% of range or ±0.5 mg/L, whichever is greater.
- Resolution: 0.02 mg/L (0.3–19.99 mg/L), 0.1 mg/L (20–99.9 mg/L), 1 mg/L (100–1000 mg/L).
- Response Time: 0–60 seconds.
- Operating Temperature: 0–60 °C.
- Electrode Dimensions: 20 mm diameter × 145 mm length.
- Protection Class: IP68 (mounted in housing).
- Housing Material: Stainless steel 1.4571 and POM-C (sensor body).
