Advance Optima AO2000 Integrated analyzer system solution

Advance Optima series with a modular system design. Broadest range of analysis technology from specialized process photometers to in-line laser measurement. Centrally and remotely operable with Ethernet networks. Designed for use in hazardous areas and with flammable sample gases.





Overview

The Advance Optima process gas analyzers have a modular design that offers long-term security in your investment. Analyzer modules can be freely combined into tailor-made solutions and upgraded or extended with new features at any time. Remote modules are easily attached and centrally operated.

The advantages to you – Advance Optima offers:
  • One central unit and up to 4 analyzer modules
    – with common control
    – with a common connection technology
    – in a common system housing
  • All analyzers use high-performance measurement technology
    – Photometers
    – In-Situ Laser Analyzer
    – Oxygen Analyzer with new microring technology
    – Oxygen Analyzers
    − Trace Oxygen Analyzer
    – Thermal Conductivity Analyzers
    – FID Analyzers
  • Multiple analyzer systems
    – up to four analyzer modules
    – with up to six sample components
  • Extensive automatic calibration
    – with air or integral calibration cells
    – no need for test gas cylinders
  • The self-monitoring function indicates when maintenance is required
  • Hazardous areas approved models in accordance with international standards like
    – ATEX
    – EAC
    – CSA
  • Hazardous area version for FID, AO2040-Fidas24 Ex
    – for measuring flammable gases in Zone 1, 2, 21, 22
  • “Safety Concept” for measuring flammable gases in Zone 2
  • Provides Ethernet TCP/IP interfaces, OPC server, PROFIBUS, and Modbus interfaces
Specifications
Advance Optima Series – Design Variations



AO2020AO2040AO2040-Fidas Ex

Rack mounted version of AO2000 series

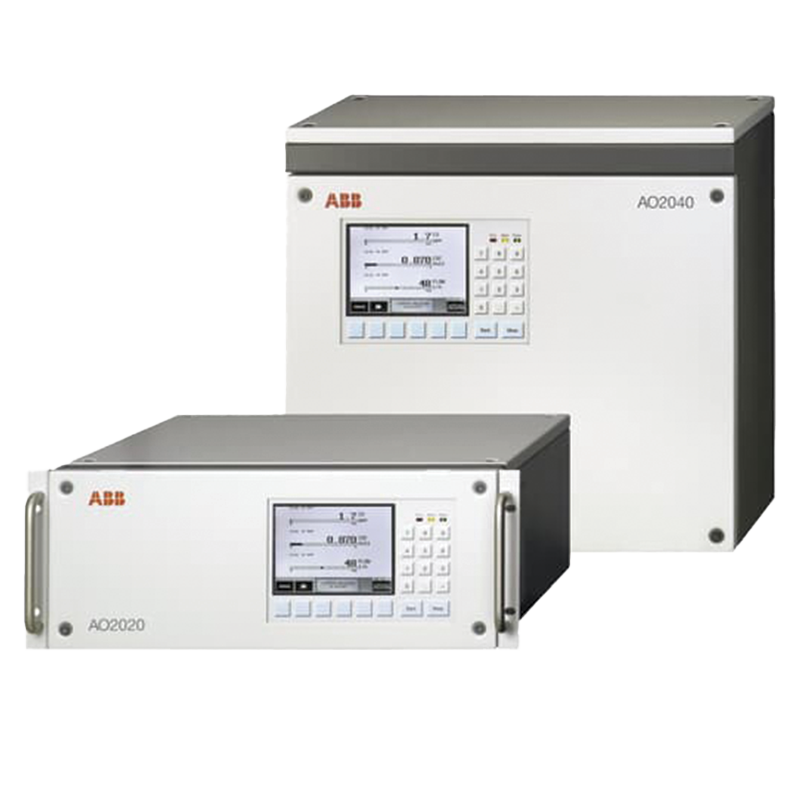

19″ rack-mounted version for controller, display/keypad, power supply, and one analyzer module. Additional housings for external analyzer modules are possible

Wall mounted version of AO2000 series

Wall mounted version
Additional housings for external analyzer modules are possible

 Wall mounted version of AO2000 series

Special wall-mounted version for the hazardous area installation of the FID analyzer (stand-alone).

Advance Optima Series – General Data


Size AO2020Size AO2040Size AO2040-Fidas24 Ex
483mm W x 412(597)*mm D x 177mm H
*values with connection box in brackets
444mm W x 199mm D x 412(597)* H
*values with connection box in brackets
444 (567)*mm W x 199mm D x 412(601)*mm H
*values with connection box and purge controller in brackets

Housing protectionHousing protectionHousing protection
IP 20
IP 54 with connection box
IP 65 without power supply/display/control unit
IP 20
IP 54 with connection box
IP 65 without power supply/display/control unit
IP 65

Power supplyPower supplyPower supply
100…240 VAC, 2,2 A max100…240 VAC, 2,2 A max110 … 230 VAC, 2 A max.



Analyzer Module

The AO2000 series provides the widest range of analyzer modules. Up to four modules can be combined into tailor-made solutions.

All analyzers use high-performance measurement technology and simplified calibration that doesn’t require test gas bottles.

  • NDIR and UV Photometers
  • In-Situ Laser Module
  • Oxygen Analyzers
  • Trace Oxygen Analyzer
  • Thermal Conductivity Analyzers
  • FID Analyzers
Type NameSample Gas (Examples)Application

Photometers
Infrared Photometer Uras26CO, CO2, NO, SO2, N2O, CH4, C3H8, C2H4, …
(max. 4)
Emission, firing, landfill, gas production, burners,
fermenters, process monitoring

Process Photometer Limas21 UVNO, SO2, NO2, H2S, Cl2, COS, …
(max. 3)
Production and processing of Cl2, cellulose,
viscose rayon, plastic prod.

Process Photometer Limas21 HWNO, NO2, NH3, …
(max. 3)
Diesel engine, managing DeNOx, catalyzer

In-Situ Laser
TDLS LS25O2, CO, CH4, NH3, H2O, CO2, HCL, H2S, HCN, HF, …
(max. 2)
Combustion optimization, DeNOx, process measurement, and -optimization
e.g. in energy-, metal-, chemical-, petrochemical-, glass-, cement- and paper-industry

Oxygen Analyzer
Paramagnetic Magnos28O2CEMs, Air fractionating, biochemical plants, purity, with microwing technology

Thermo-
magnetic
 Magnos27O2Flue gas analysis, roasting gas, cement flue gas
Thermal Conductivity
Silicon sensor Caldos27Ar in O2, H2 in Ar,
H2 in N2/Air, …
Hydrogen purity, turbo generator, inert gas monitoring,
UEL/LEL monitoring

Glass cell Caldos25H2 in Cl2, SO2 in N2/Air,
H2 in N2/Air, …
Chlorine production, sulfur dioxide in smelter-off gas, ammonia dissociation
Flame Ionization
FID Detector Fidas24HydrocarbonsVolatile organic compounds, emission monitoring,
automotive industries, ambient air, process control
