OPERATION
The SEVA actuator consists of a microprocessor-controlled, linear stepper motor that responds to various control inputs. It also offers an optional isolated loop-powered position output for signaling back to an indicator or control panel.

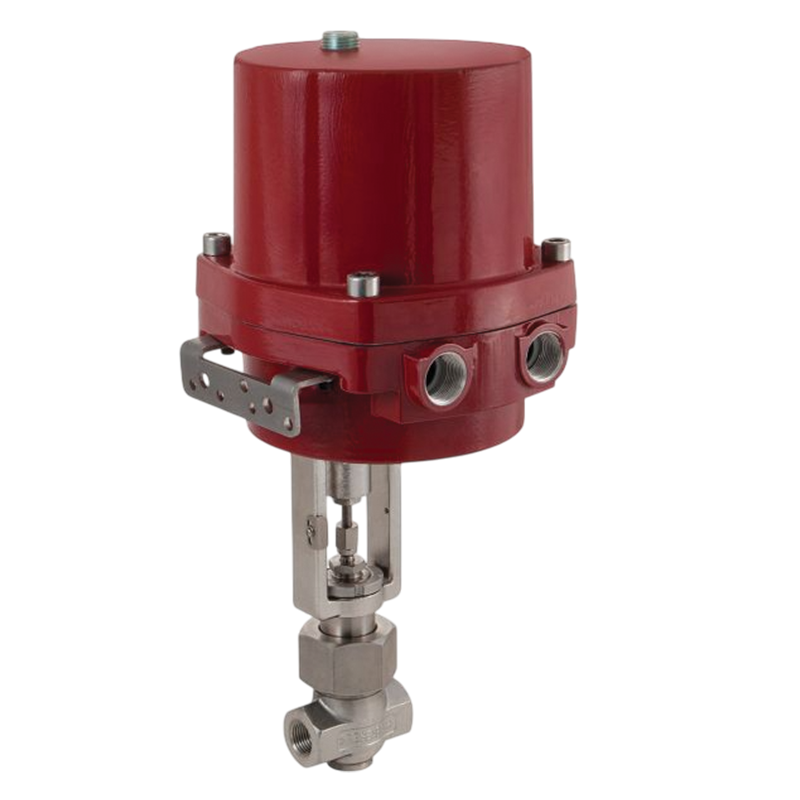

Actuator, Electric (SEVA 100)
The SEVA is our next-generation Smart Electric Valve Actuator that provides our customers with an electric actuator with best-in-class
features. This product was designed for extreme conditions with military-grade components while providing the accuracy and repeatability the market demands.
The SEVA actuator is manufactured by:
Badger Meter® Inc., 6116 E. 15th St., Tulsa, OK 74112.
Two models are available:
- SEVA 100 for 1/4…1 in. Research Control® Valves
- SEVA 200 for 1/4…2 in. Control Valves
FEATURES
- Microprocessor-controlled, linear stepper motor
- Manual override
- Maximum thrusts of 100 and 200 lbF
- Overvoltage protection
- Setup via firmware and terminal interface via USB port
- Universal AC input
- 24V DC input
- Optional limit switches for customer-adjustable limit points
- Analog input/output
- USB CDC device (mini – B)
- Internally powered (active) feedback
- SoloCue Software
Optional communication protocols:
- EtherNet/IP
- Modbus® TCP/IP
- Modbus® RTU
