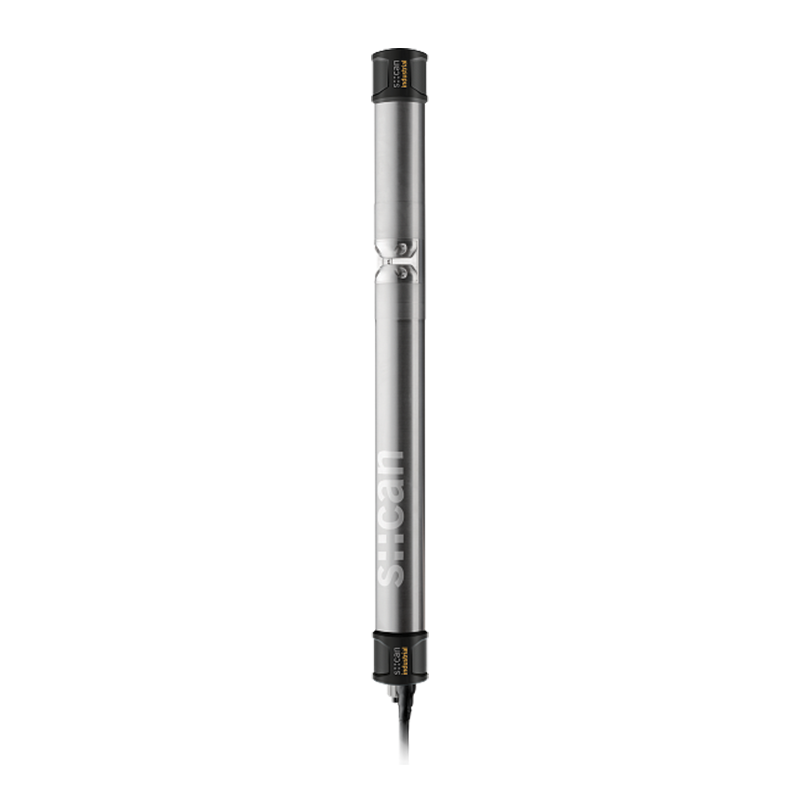

Description
- s::can plug & measure
- measuring principle: UV-Vis spectrometry over the total range (190-720 nm)
- ideal for industrial waste water, desalination and sea water
- rugged design with titanium grade 2 housing
- factory precalibrated, with advanced calibration service included
- long term stable and maintenance free in operation
- automatic cleaning with compressed air or brush
- mounting and measurement directly in the media (InSitu) or in a flow cell (monitoring station)
- adaption of optical path lengths to 35 mm, 5 mm, 2 mm, or 0.5 mm possible
- easy mounting without clogging
Technical Specification
power supply: 12 VDC
power consumption (typical): 150 mA (average)
power consumption (max.): 300 mA
cable length: 7.5 m
housing material: POM-C
dimensions (width x height x xdepth): 182 x 46 x 36.5 mm
weight (min.): 750 g
installation / mounting: submersed
operating pressure 0 … 0.5 bar
ingress protection class: IP68
storage temperature: -20 … 80 °C
storage humidity: 0 … 95 %
